FOCMKEAS AXK Needle Roller Thrust Bearing Set 10pcs with Washers Size

Description

Product Overview

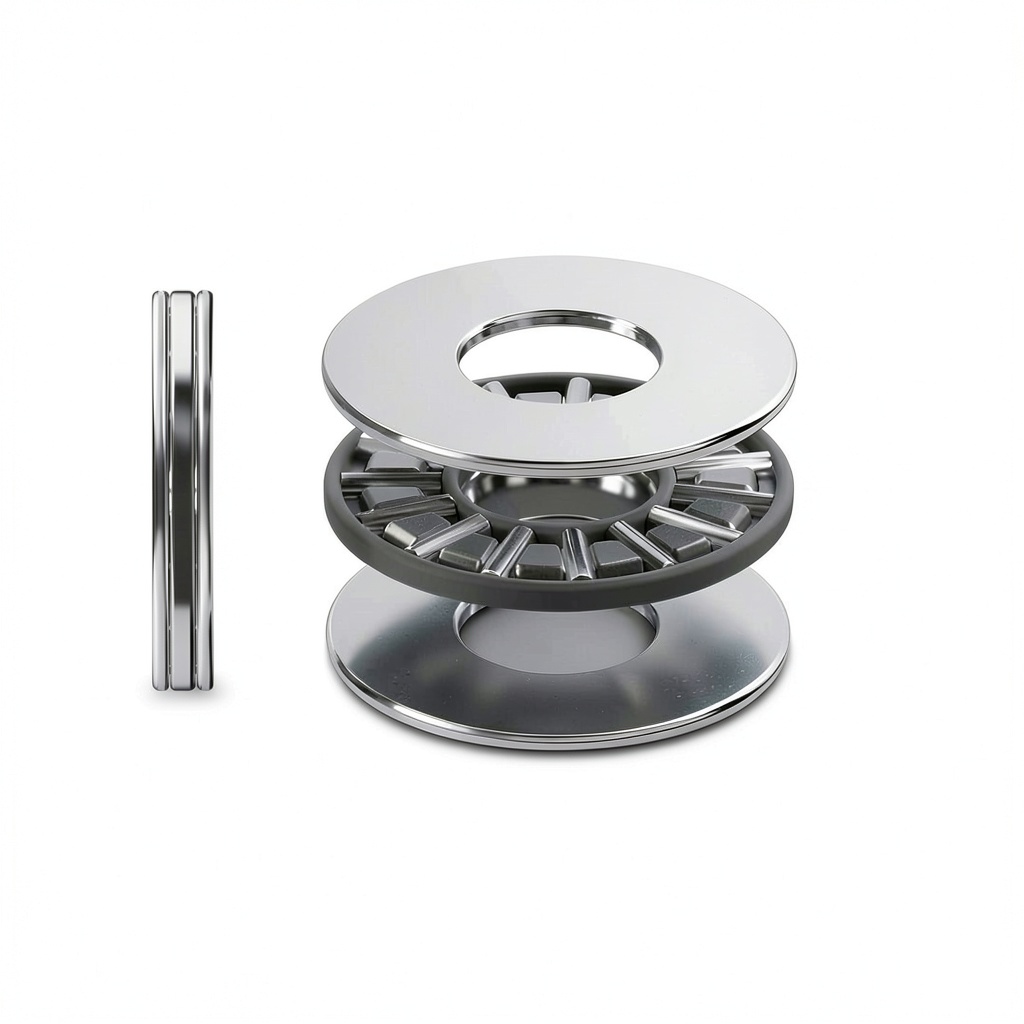

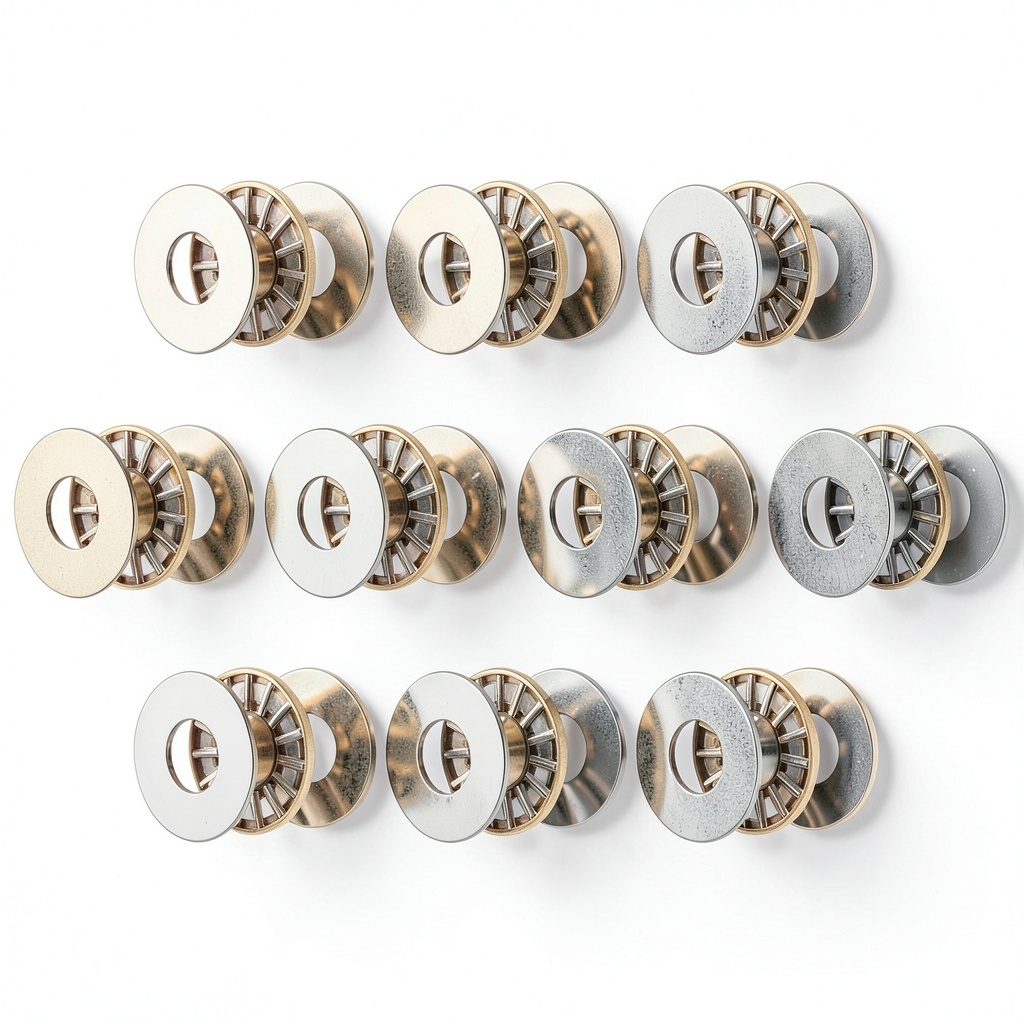

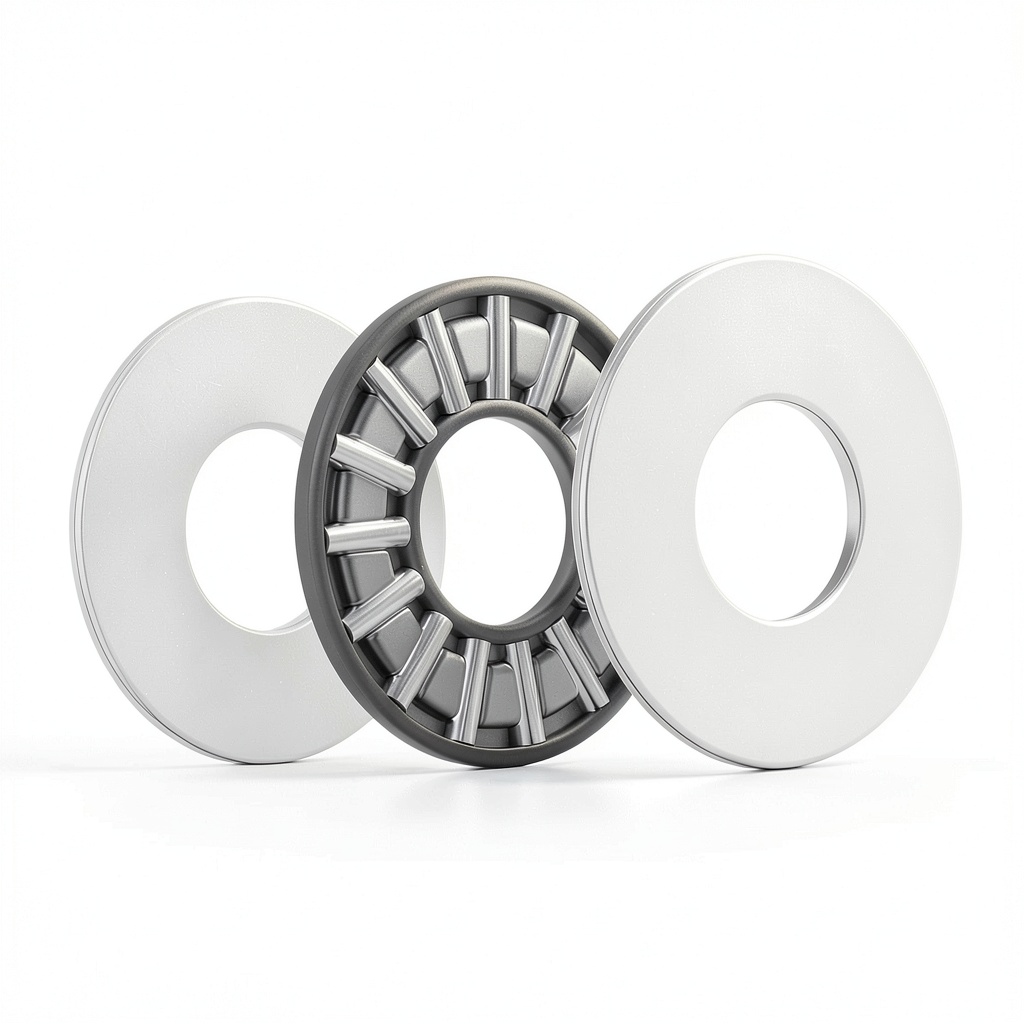

The FOCMKEAS AXK needle roller thrust bearing set is engineered for demanding industrial environments where axial loads dominate. Each bearing features high‑strength bearing steel rollers that resist heat and wear, while a robust steel cage ensures even spacing and smooth rotation. The set includes ten AXK1226 bearings (inner diameter 12 mm, outer diameter 26 mm, thickness 4 mm) and two AS‑type washers that act as raceways when adjacent components cannot provide a surface. With a static load rating of 23.2 kN and a dynamic rating of 7.92 kN, these bearings deliver consistent performance at speeds up to 12,000 RPM.

Usage

Designed for a wide range of applications, these thrust bearings excel in agricultural machinery, conveyor systems, elevators, rolling mills, and robotic arms. They are also suitable for trailers, rudder shafts, aggregate crushers, minibikes and lathe equipment where axial forces are prevalent. Install the bearing between rotating shafts and stationary housings to absorb thrust loads, reduce vibration, and extend the life of surrounding components. The included washers simplify installation in designs lacking built‑in raceways.

Why Choose Us

FOCMKEAS combines decades of bearing expertise with rigorous quality control to deliver products that meet ISO standards. Each bearing undergoes heat treatment and precision grinding to achieve tight tolerances and surface finish. Our steel cage design minimizes metal‑to‑metal contact, reducing wear and noise. We back every purchase with responsive technical support and a hassle‑free return policy, ensuring confidence throughout the product lifecycle.

Key Features

• High‑strength steel rollers provide excellent heat tolerance and load capacity.
• Precision steel cage ensures even roller spacing for low friction and quiet operation.
• Static load rating of 23.2 kN and dynamic rating of 7.92 kN handle heavy axial forces.
• Maximum rotational speed of 12,000 RPM supports high‑speed machinery.

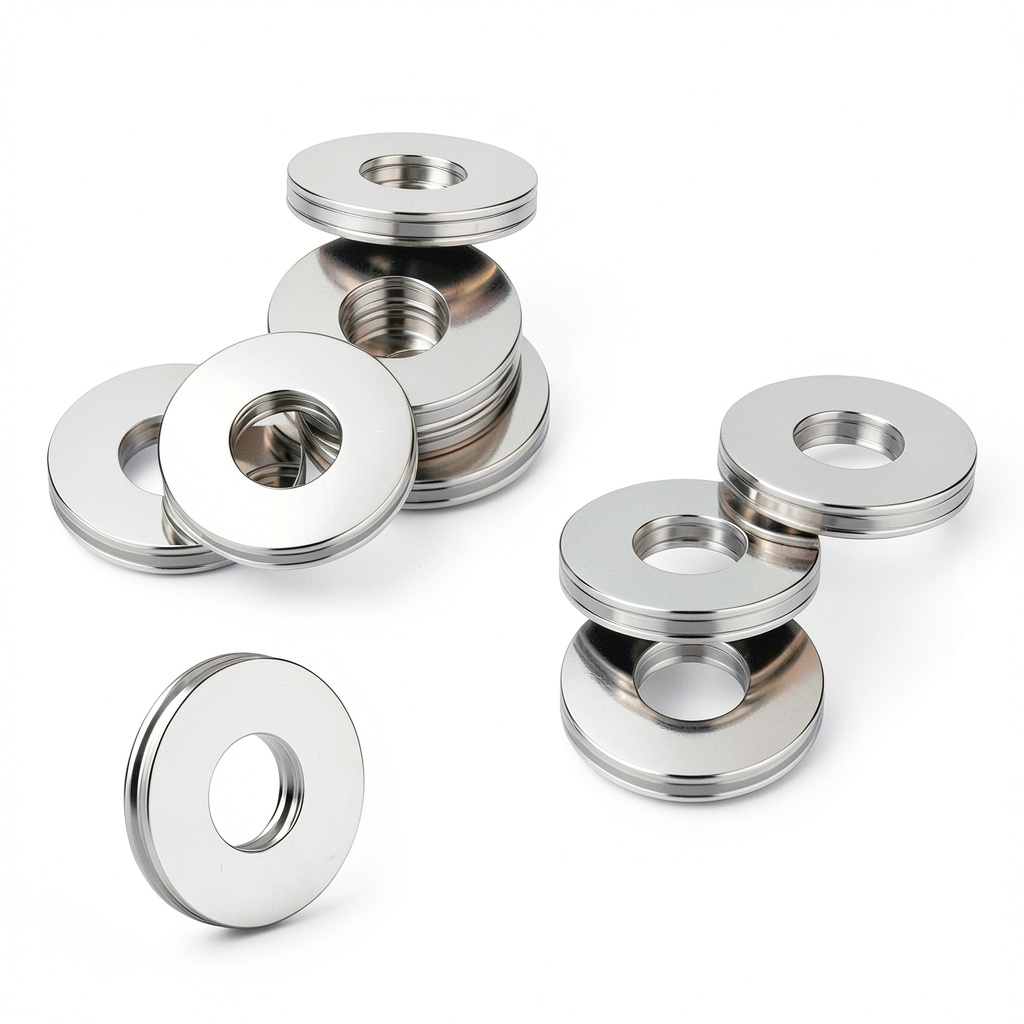

• Includes two AS washers for easy installation when raceways are unavailable.
• Versatile size AXK1226 fits a broad range of industrial equipment.
• Durable construction reduces maintenance intervals and downtime.
• Dedicated customer support and straightforward warranty process.

FAQ

Can these bearings be used for radial loads?

These needle roller thrust bearings are optimized for axial loads in one direction only. They are not intended for significant radial load applications.

What is the purpose of the included washers?

The AS washers act as raceways when the adjacent machine components cannot serve that function, ensuring proper bearing alignment and load distribution.

Are the bearings compatible with lubricants?

Yes, applying a light layer of high‑temperature bearing grease during installation can further reduce friction and extend service life.

How do I determine the correct size for my equipment?

Measure the inner diameter, outer diameter, and thickness of the shaft or housing where the bearing will sit. The AXK1226 size corresponds to 12 mm ID, 26 mm OD, and 4 mm thickness.

What warranty does FOCMKEAS provide?

We offer a one‑year limited warranty covering manufacturing defects, backed by our technical support team for installation guidance and troubleshooting.
